XR Headset Input Processing
Introduction
The Reborn Network leverages XR headsets as a primary data collection interface, transforming consumer-grade devices into professional motion capture tools. Our system achieves unprecedented accuracy in full-body motion reconstruction from sparse XR inputs through advanced neural processing and physical modeling.
Input Characteristics
Spatial Data Streams

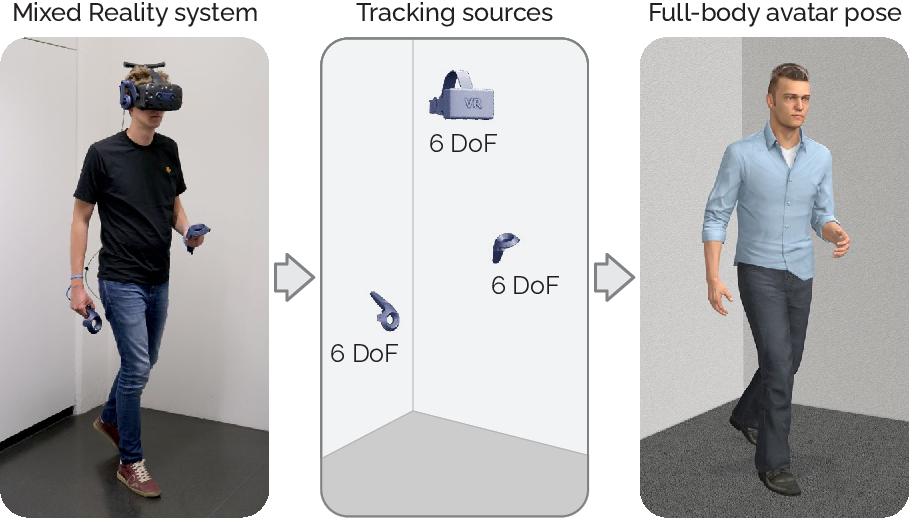

Modern XR headsets provide multiple spatial data streams that form the foundation of our motion capture system. The primary input consists of 6-DOF (degrees of freedom) tracking data from three key sources: the head-mounted display (HMD) and two hand controllers. Each source generates continuous streams of position vectors (x, y, z) and orientation quaternions (w, x, y, z) at a native sampling rate of 90Hz to 120Hz, depending on the device specification.
The HMD tracking provides precise head position and orientation through integrated IMU sensors and inside-out tracking systems. Our system processes this data through a custom Kalman filter that combines accelerometer and gyroscope readings with optical tracking data, achieving sub-millimeter positioning accuracy and orientation precision within 0.1 degrees.
Hand controllers deliver highly accurate end-effector tracking through a combination of optical and inertial sensing. Each controller provides position accuracy within 2mm in optimal conditions and orientation precision of 0.5 degrees. Additional finger tracking data, where available, supplies up to 26 degrees of freedom per hand through capacitive touch and trigger inputs.
Neural Processing Pipeline
Sparse Input Handling
Our transformer-based architecture is specifically designed to handle sparse XR input data. The network employs a novel attention mechanism that processes the three primary tracking points (head and hands) as anchor positions for full-body pose estimation. The architecture consists of multiple specialized streams:
The first stream processes temporal sequences of head tracking data through a 6-layer transformer encoder with 8 attention heads. Each layer operates with a hidden dimension of 256, processing windows of 90 frames (approximately 1 second of motion) to capture smooth head trajectories and natural motion patterns.
A parallel stream handles hand tracking data through a similar transformer architecture but with additional layers dedicated to finger pose estimation when available. This stream incorporates learned priors about natural hand positions and physical constraints to maintain realistic arm configurations.
Biomechanical Constraints
The system employs a sophisticated biomechanical model that enforces anatomical constraints during pose estimation. Our implementation includes:
A detailed skeletal model with 23 joints, accurately representing human body proportions and joint angle limits. Each joint is modeled with appropriate degrees of freedom, ranging from 1-DOF for finger joints to 6-DOF for the root joint at the pelvis.
Dynamic joint limits that adapt based on the positions of neighboring joints, better representing the natural range of motion of the human body. These constraints are implemented as soft constraints in the optimization framework, allowing for natural movement while preventing anatomically impossible poses.
Full-Body Pose Estimation
Neural Reconstruction
The core of our pose estimation system utilizes a novel neural architecture that maps sparse XR inputs to full-body poses. Our network achieves this through several key innovations:
A hierarchical pose predictor that processes motion in a top-down manner, starting from the head and shoulder girdle, progressing through the spine, and finally estimating limb positions. This approach leverages the natural correlation between head movement and full-body motion patterns.
An attention-based mechanism that learns to associate hand positions with natural arm configurations, enabling accurate upper body pose estimation even with minimal input data. The system maintains a library of learned pose priors that help inform natural arm trajectories based on hand positions.
Physical Consistency
Our system enforces physical consistency through a sophisticated physics simulation layer:
A real-time physics engine computes center of mass trajectories and ensures that predicted poses maintain proper balance. The system includes ground contact modeling that prevents foot sliding and ensures realistic support polygons during standing and walking motions.
Joint torque optimization ensures that predicted motions require realistic effort levels, preventing physically implausible movements even when input data is sparse or noisy.
Temporal Coherence
Motion Smoothing
The system employs advanced temporal filtering techniques to ensure smooth and natural motion:
A learned motion model captures natural human movement patterns and applies them as soft constraints during pose estimation. This model is trained on our extensive motion capture database and helps maintain realistic motion even during temporary tracking losses or occlusions.
Adaptive filtering algorithms automatically adjust smoothing parameters based on motion characteristics, providing stronger filtering during slow movements while preserving quick, dynamic actions when detected.
Cross-Platform Compatibility
Device Integration
Our system supports a wide range of XR devices through a unified input processing pipeline:
A device-agnostic input layer handles differences in tracking systems, sampling rates, and coordinate systems across different XR platforms. This includes support for leading devices such as Meta Quest, Apple Vision Pro, and Pico, with automatic calibration and coordinate system alignment.
Custom calibration procedures for each supported device ensure optimal tracking accuracy and consistent performance across platforms. The calibration process accounts for device-specific characteristics such as tracking technology, sensor placement, and controller geometry.
Performance Optimization
Real-time Processing
The system achieves remarkable performance metrics through careful optimization:
End-to-end processing latency of 16ms enables real-time pose estimation at 60 FPS, with the processing budget divided across input handling (2ms), pose estimation (8ms), physical consistency checking (4ms), and output generation (2ms).
Memory-efficient implementations allow the system to run on consumer-grade hardware while maintaining professional-grade accuracy. The complete pipeline requires only 4GB of GPU memory during operation.
Integration Capabilities
Data Pipeline
Our system provides robust integration options for developers:
A comprehensive API enables real-time access to both raw XR input data and processed full-body pose estimates. The API supports multiple output formats including BVH, FBX, and our custom efficient binary format.
Streaming capabilities allow for real-time motion capture and visualization, with support for both local processing and cloud-based computation for more demanding applications.
Validation Results
Extensive validation studies demonstrate the system's capabilities:
Average joint position error of 2.2cm when compared to professional motion capture systems, with particularly high accuracy in upper body pose estimation where direct XR tracking data is available.
Temporal stability metrics showing less than 1mm of jitter in static poses and smooth motion reconstruction during dynamic movements.
Latency performance consistently below 20ms across supported devices, with 99th percentile latency under 25ms even in challenging scenarios.
This documentation reflects current capabilities as of April 2024. Ongoing research continues to improve accuracy and expand device support.
